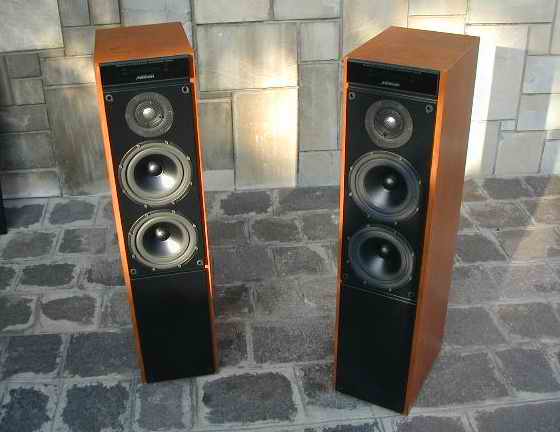

Diffusori attivi digitali Meridian DSP 5000 MKII

Descrizione

Performance: Frequency response in-room within 3dB from 35Hz to over 20kHz. Linear-phase mid–top crossover, 6th-order Linkwitz-Riley bass–mid crossover. Output >108dB spl @ 1m on music material. Noise less than 15dB spl. Overall distortion typically <0.02% at any frequency or level.

Inputs: Two digital inputs to SPDIF standard; 32kHz–96kHz sampling rates at up to 24 bit; MHR support. (A future software update will enable support for 192kHz.)

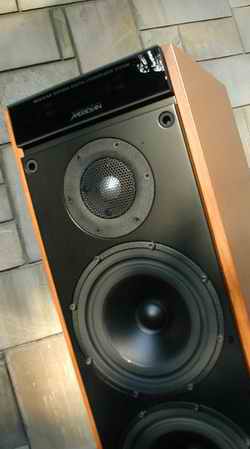

: 2.5-way acoustic reflex system. 2 x 160mm polypropylene bass drivers. 1 x 25mm aluminium-dome tweeter, silver wire, short horn-loaded with protective grille. Cabinet constructed in veneered MDF braced and damped, in black ash, cherry or rosewood finish. FIFO memory buffer input for the lowest possible jitter from almost any source. Four precision 128x oversampling converters for bass, mid and tweeter signals. Analogue gain and filtering using proprietary Meridian Class-A discrete amplification. Digital and conversion electronics constructed using advanced surface-mount techniques and partitioned 6-layer printed-circuit boards. Three 75W power amplifiers, one for each of the drivers. Power amplifiers use a unique feedback topology and precision local error-correction systems to achieve a performance equivalent to the conversion system.

: 900mm (35.43in) H, 210 (8.27) W, 297 (11.69) D Weight 32kg (71lb) each

DSP: 100MHz Freescale digital signal processor. Digital crossover at 2.6kHz. Response correction for the whole system. Bass protection. User tone controls. Volume and phase control.

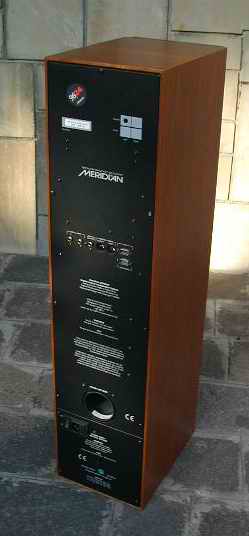

Controls: Rear-panel controls for power On/Off. MSR and RS232 port provide control over bass, treble tilt, listening axis, volume, time-compensated balance and absolute phase.

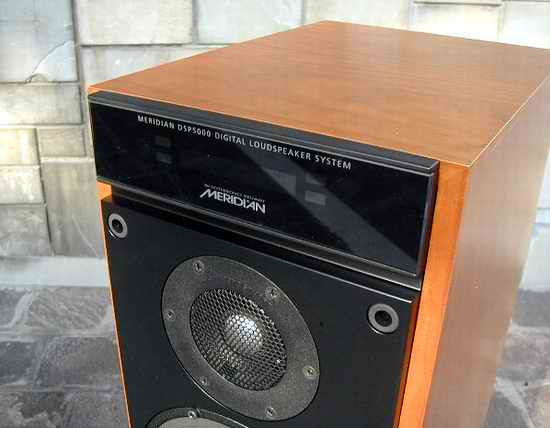

Front display: Eight-character display with system lights, can be blank.

Di cosa si tratta diffusori 3 vie

Produttore Meridian

Caratteristiche 3 vie amplificate digitali

Costo

7230 euro anno 2006

Specifiche

Tipo diffusore	attivo
Risposta in frequenza	35Hz-20kHz
Configurazione vie	2.5
Tipo cabinet	bass reflex
Pressione sonora massima (1m)	108 dB
Distorsione armonica (THD)	0.02 %
Potenza RMS per canale	75 W
Tweeter	25mm aluminium-dome, silver wire, short horn-loaded
Woofer	2 x 160mm polypropylene
Materiale cabinet	veneered MDF
Finitura	black ash, cherry, rosewood
Dimensioni	L 90 × A 21 × P 29,7 cm
Peso	32 kg
Ingressi digitali	2 x SPDIF
PCM max	24-bit, 32kHz-96kHz
DAC integrato	sì
Tipologia amplificazione	classe A
Anno produzione	2006
Paese di origine	UK
