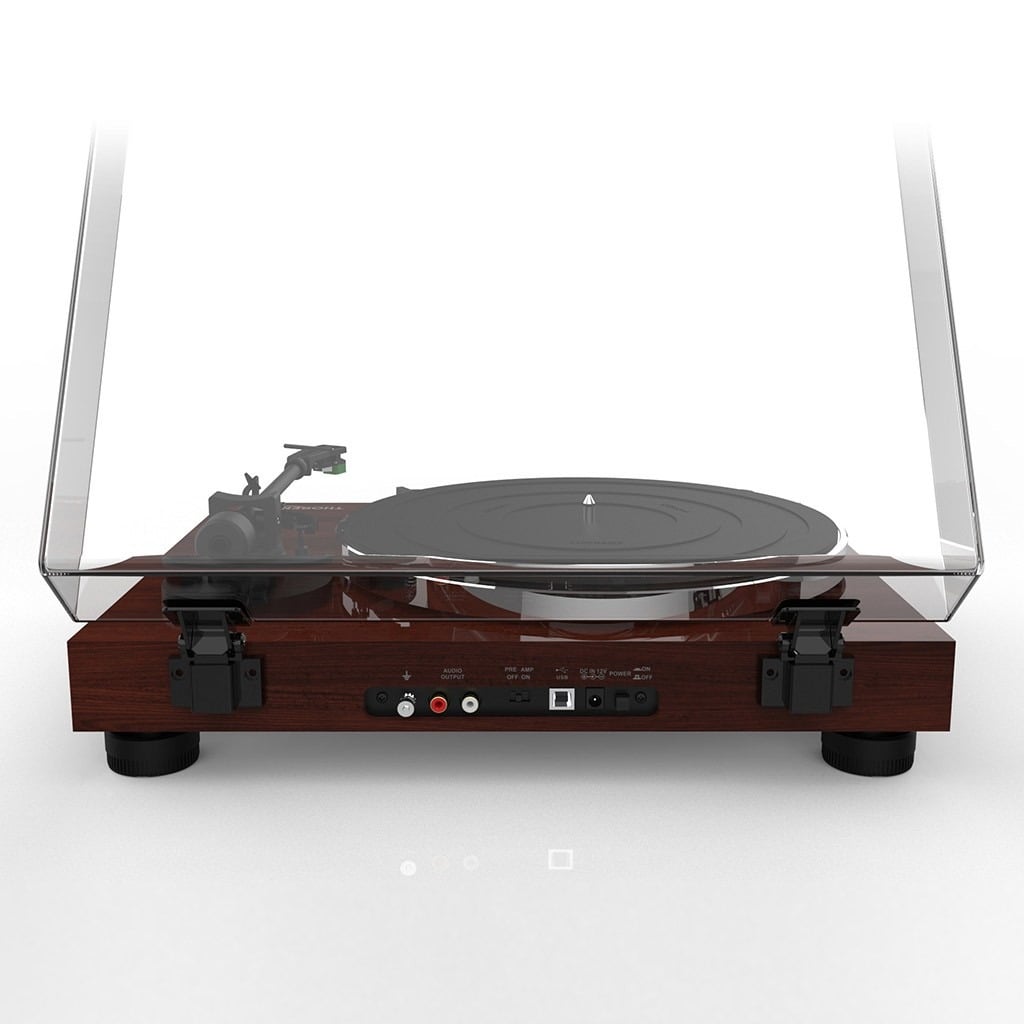

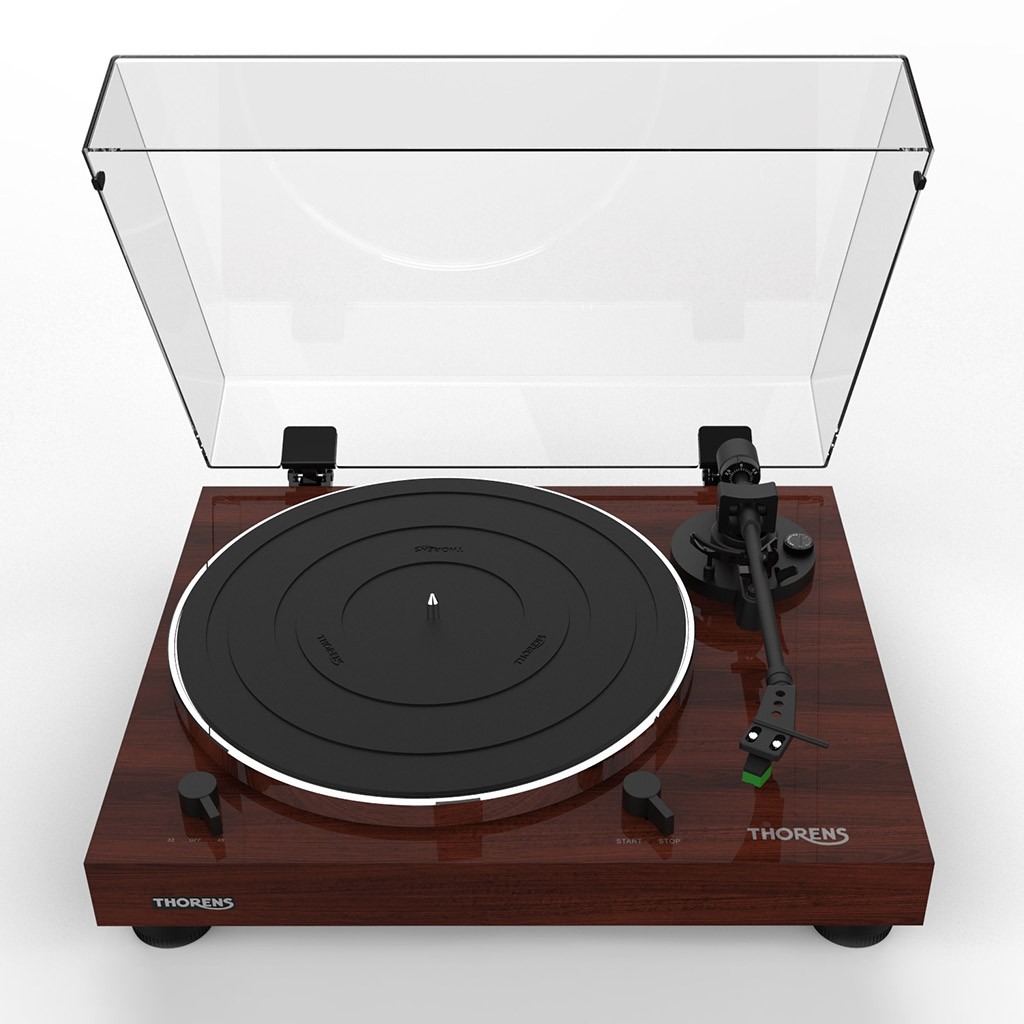

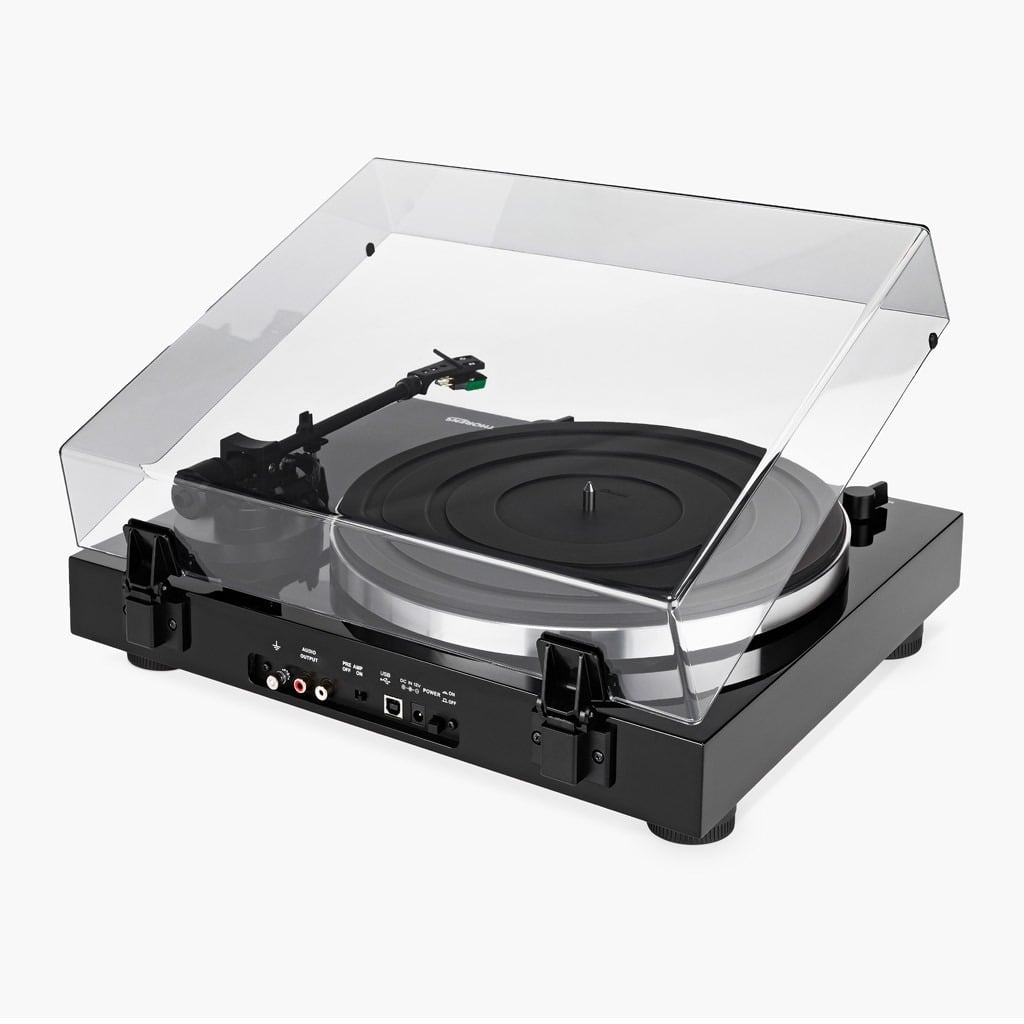

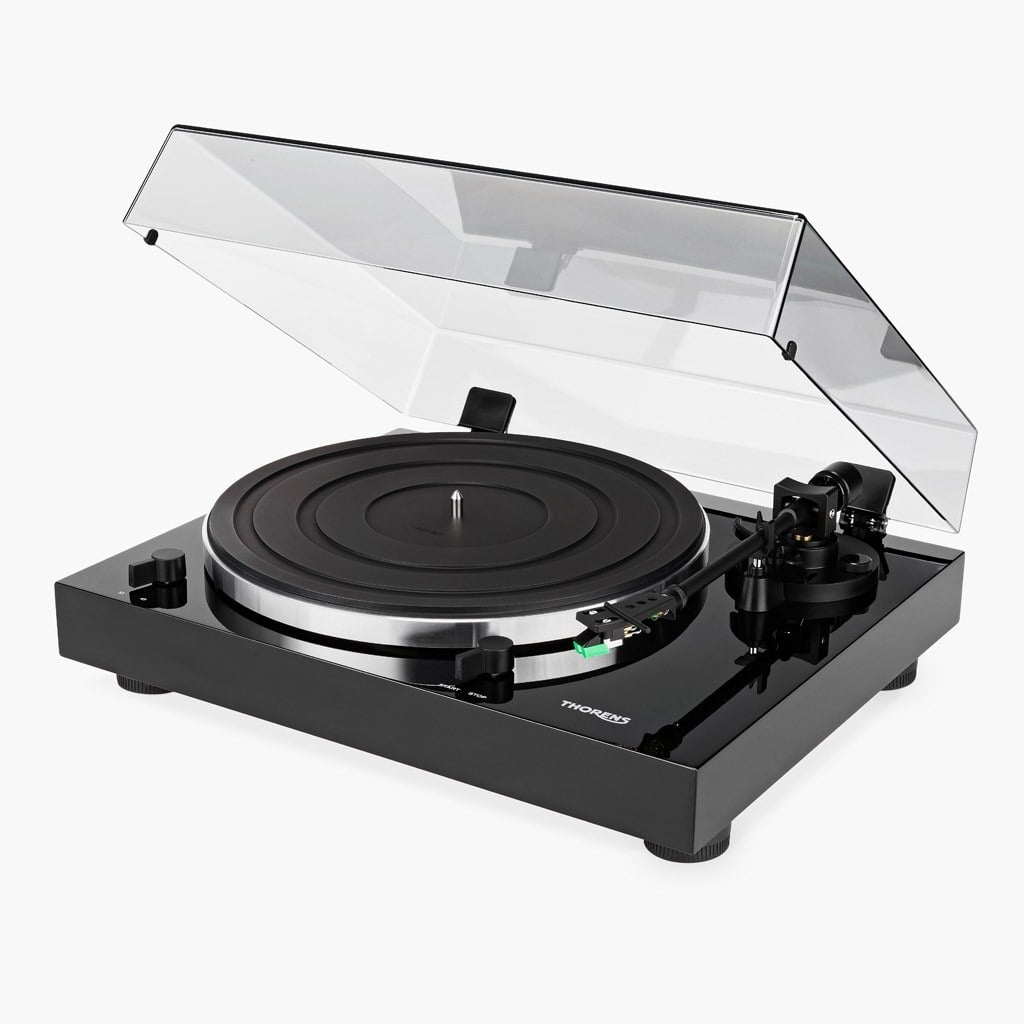

Thorens TD 202

TD 202

Motor DC Motor
Speed 33 1/3 RPM, 45 RPM
Rotation Speed Variation +/–2%
Wow and Flutter 0.2%
Signal-to-Noise Ratio 67dB or higher (A-weighted, 20kHz LPF)
60dB or higher (unweighted, 20kHz LPF)
Platter Aluminum Die-cast
Diameter of Platter 12″, 300mm
Tonearm section Alumi tube
Type Static Balance, Straight
Effective Arm Length 8.8″, 223.6mm
Stylus Pressure Range 0 to 4g
Supported Cartridge Weight 3.5 to 6.0g
Overhang 18.6mm
Anti-skating Adjustment Supported
Cartridge section
Type MM type (Audio-Technica AT-95E)
Stylus Construction Bonded Diamond
Frequency Response 20Hz to 20kHz
Channel Separation >18dB
Channel Balance 2.5dB
Vertical Tracking Angle 20 degrees
Supported Load Impedance 47k ohms
Output Voltage 2.5mV (1kHz, 3.54cm/sec.)
Stylus Pressure 2.0g +/–0.5g
Cartridge Weight 5.7g +/–0.5g
Head-shell Weight 11g (including Screws, Nuts and Wires)
Thorens GmbH · Lustheide 85 · 51427 Bergisch Gladbach · Deutschland
www.thorens.com
info@thorens.com
Analog Output
Connector RCA Pin jack (Gold-plated)
Power AC 100 to 240V, 50/60Hz
Power Consumption 1.5W (less than 0.5W at Standby)
Overall Dimensions
(W x H x D)
420 x 355x 121mm
Weight Approx. 3.9 kg

Giradischi manuale a telaio rigido rinforzato con trazione a cinghia – preamplificatore phono mm incorporato con facolta` di impostare l’uscita del segnale dai connettori rca a livello “line” o “phono” mediante selettore – convertitore analogico/digitale con uscita usb per digitalizzare su computer i propri lp in vinile – braccio tp 71 con headshell portatestina rimovibile e testina mm audio-technica at95e in dotazione – velocita` d rotazione 33 e 45 rpm – motore in dc – controllo dell’anti-skating – piatto in alluminio pressofuso – tappetino smorzante in gomma – cappa parapolvere in dotazione – finitura high gloss black (nero laccato) – dimensioni (l x a x p) 420 x 121 x 355 mm.
